The towable access platforms are most suitable for multifarious repairs within industrial establishments as well as outdoors; towable by any sturdy multi-utility vehicle or small sized tractor, custom made to order. 360º slewing by means of hydraulic cylinder rack & pinion or hydraulic motor (continuous slewing) capacity 160 kgs, 227 kgs, & 250 kgs. Maximum height 6 m upto 21 m

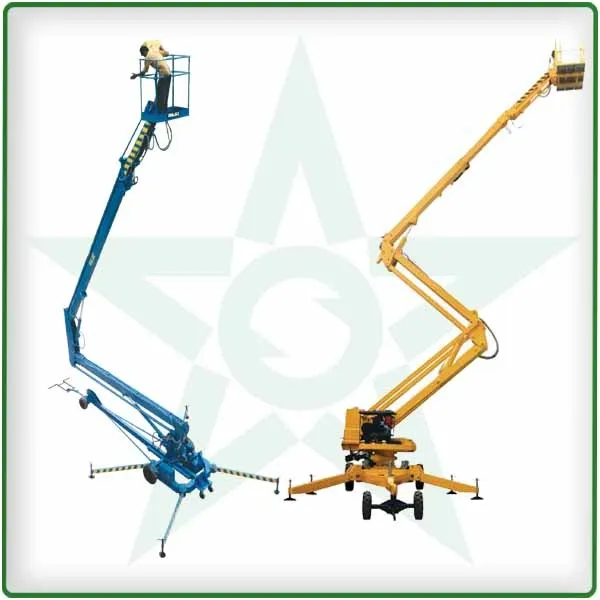

Vanjax Painted Steel Aerial Access Platform- Towable, Single Mast
In Stock
Share Product
Share on facebook
Share on whatsapp
Share on email
Technical Specs
| TYPE ( ARTICULATED BOOM) : | VXAPF – 200 / 18000 SP |
|---|---|
| PLATFORM CAPACITY : | 200 kgs |
| MAXIMUM PLATFORM HEIGHT : | 18000 mm |
| MAXIMUM OUTREACH : | 8500 mm |
| ROTATION : | 360° CONTINUOUS |
| BASKET SIZE : | 1120 X 720 X 1120 mm |
| STABILIZER : | 4 Nos |
| WEIGHT (approx) : | – |
